Environmental Control System #2

Created by Chris Sandu, Modified on Tue, 18 Feb, 2025 at 9:07 AM by Chris Sandu

MIS Department Policy & Procedure

Document Name:	Environmental Control System #2	Document Type:
Written by:	Kevin Krajewski	Date/Revision Date:	9/15/2022

This Environmental Control System #2 manages City Hall and the OCSD substation. Will be installed mid 2013.

This system is managed by K&S Ventures

248-299-4212

2653 Auburn Rd, Auburn Hills, MI 48326

Sid Bloomberg

Chris Conley

Hosted server URL

New user interface

https://ksvbms1.ksv.us/login

(Old user interface - http://yourbuilding.ksv.us/login)

Device Internal IP Address of device Firewall S/N Remote IP Address External IP Address on City network Firewall MAC Address WOW Internet

Account#

Hosted Server at K&S N/A N/A 207.91.247.154 (formerly 75.151.10.37)

207.91.247.155 (formerly 75.151.10.38)

75.151.10.41-NOT USED N/A N/A

FX#1

Controller at City Hall 172.20.13.1 N/A N/A 50.200.85.250 N/A

FX#2 Controller at City Hall 172.20.13.2 N/A N/A 50.200.85.251 N/A

K&S IP reservations 172.20.13.10-20

Existing N30

Controller at OCSD

To be removed 172.16.66.15 N/A N/A N/A N/A

FX#1

Contoller at OCSD 172.16.66.10 69.14.190.152

OCSD FW 172.16.66.5 1BU4337G0080A 69.14.190.152

GW 69.14.190.129

Mask 255.255.255.224 N/A 28C68E689A39

OCSD Energy Mgt PC DP0992 172.16.66.6

GW is 66.5 N/A N/A N/A N/A

Current computer DP1455 as of 9/2022 (replaced DP0992 is using OpenDNS)

User account for Facilities

energymgt

pw=cool-warm2022

Local administrator account is “mis” - check Dashlane for PW

You must use the local admin account for desktop PC's to connect with Logmein

System requires JAVA

WOW! Business Solutions Customers

Please contact us at 1-888-969-4249.

Account number is 012046964

750 Barclay Circle

Holly at support 248-506-5331

Firewall at OCSD

Netgear FVS318

To reset to factory defaults push reset button on back of unit for 15 seconds.

Factory default Username=admin Password=password

Netgear Firewall Login: UN - admin / Password - Firewall#guru17

Firewall can be accessed on ports 1-8 at 172.16.66.5 or www.routerlogin.net from a locally attached computer.

Remote access is accessed on the static IP on HTTPS://69.14.190.152:8080

Remote management is open to city hall addresses 96.27.111.196 and 96.27.111.196.

DHCP scope set to 172.16.66.100 thru 66.120 , mask is 255.255.0.0

The config for the firewall is saved at I:\Net\sysadmin\Firewall\NetgearFirewallBackup\OCSD

If the firewall is replaced WOW will have to be contacted and notified of the new MAC address for the internet port of the firewall so they can reassign the static IP address associated with the firewall to the new MAC address. Vince has the contact info for WOW and the account numbers.

Below is the CURRENT RULESET on the Netgear firewall for OCSD (as of 9/2022 mc)

Inbound Services

# Enable Service Name Action LAN Server IP address WAN Users Log

1 FOXService ALLOW always 172.16.66.10 207.91.247.154 - 207.91.247.155 Never

2 HTTP ALLOW always 172.16.66.10 207.91.247.154 - 207.91.247.155 Never

3 HTTPS ALLOW always 172.16.66.10 207.91.247.154 - 207.91.247.155 Never

4 Platform ALLOW always 172.16.66.10 207.91.247.154 - 207.91.247.155 Never

5 BacNetUDP ALLOW always 172.16.66.10 207.91.247.154 - 207.91.247.155 Never

6 BacNetTCP ALLOW always 172.16.66.10 207.91.247.154 - 207.91.247.155 Never

7 RemoteCFG ALLOW always 172.16.66.10 207.91.247.154 - 207.91.247.155 Never

8 SMTP ALLOW always 172.16.66.10 207.91.247.154 - 207.91.247.155 Never

9 Time ALLOW always 172.16.66.10 207.91.247.154 - 207.91.247.155 Never

Highlighted settings are all disabled per K&S instructions (9/16/2022 mc)

10 FOXService ALLOW always 172.16.66.10 75.151.10.41 Never

11 HTTP ALLOW always 172.16.66.10 75.151.10.41 Never

12 HTTPS ALLOW always 172.16.66.10 75.151.10.41 Never

13 Platform ALLOW always 172.16.66.10 75.151.10.41 Never

14 BacNetUDP ALLOW always 172.16.66.10 75.151.10.41 Never

15 BacNetTCP ALLOW always 172.16.66.10 75.151.10.41 Never

16 RemoteCFG ALLOW always 172.16.66.10 75.151.10.41 Never

17 SMTP ALLOW always 172.16.66.10 75.151.10.41 Never

18 Time ALLOW always 172.16.66.10 75.151.10.41 Never

19 RDP ALLOW always 172.16.66.6 50.200.85.243 Match

20 VNC ALLOW always 172.16.66.6 50.200.85.243 Match

Default Yes Any BLOCK always -- Any Match

Default DMZ Server

172.16.66.0

Respond to Ping on Internet WAN Port

—-----------------------------------------------

OLD RULESET

# Enable Service Name Action LAN Server IP address WAN Users Log

1 FOXService ALLOW always 172.16.66.10 75.151.10.37 - 75.151.10.38 Never

2 HTTP ALLOW always 172.16.66.10 75.151.10.37 - 75.151.10.38 Never

3 HTTPS ALLOW always 172.16.66.10 75.151.10.37 - 75.151.10.38 Never

4 Platform ALLOW always 172.16.66.10 75.151.10.37 - 75.151.10.38 Never

5 BacNetUDP ALLOW always 172.16.66.10 75.151.10.37 - 75.151.10.38 Never

6 BacNetTCP ALLOW always 172.16.66.10 75.151.10.37 - 75.151.10.38 Never

7 RemoteCFG ALLOW always 172.16.66.10 75.151.10.37 - 75.151.10.38 Never

8 SMTP ALLOW always 172.16.66.10 75.151.10.37 - 75.151.10.38 Never

9 Time ALLOW always 172.16.66.10 75.151.10.37 - 75.151.10.38 Never

10 FOXService ALLOW always 172.16.66.10 75.151.10.41 Never

11 HTTP ALLOW always 172.16.66.10 75.151.10.41 Never

12 HTTPS ALLOW always 172.16.66.10 75.151.10.41 Never

13 Platform ALLOW always 172.16.66.10 75.151.10.41 Never

14 BacNetUDP ALLOW always 172.16.66.10 75.151.10.41 Never

15 BacNetTCP ALLOW always 172.16.66.10 75.151.10.41 Never

16 RemoteCFG ALLOW always 172.16.66.10 75.151.10.41 Never

17 SMTP ALLOW always 172.16.66.10 75.151.10.41 Never

18 Time ALLOW always 172.16.66.10 75.151.10.41 Never

Default Yes Any BLOCK always -- Any Match

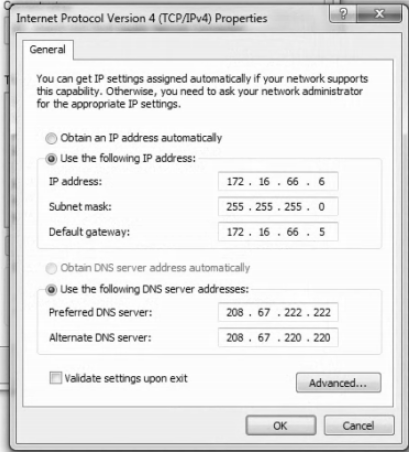

PC IP4 settings

See attachments below for ports that need to be open from K&S servers to FX controllers.

NetworkingITGuide - Kevin Krajewski, Aug 9, 2013, 2:37 PM

RochHills TRIDIUM PORTS - Kevin Krajewski, Aug 9, 2013, 2:37 PM

Comments:

Margaret Casey - K&S notified us of new IP addresses, which were changed on the Netgear firewall (see settings above). 9/15/2022

Kevin Krajewski

Nov 17, 2017

11/17/2017 Updated PC with all WIndows updates and JAVA update. Reset shortcuts to the new user interface. Called WOW out for modem replacement. Everything is operational now.
